ATC SCM50ASL Active Stand-Mount Speaker

SKU 109
Price

$37,995.00

Overview

  •  75mm (3") SM75-150S soft dome midrange driver

  • new 25mm ATC SH25-76S tweeter

  • 234mm (9″) bass driver incorporating ATC’s unique Super Linear Magnet technology

  • 3 x Class A/B MOSFET amplifiers, 200W bass, 100W mid & 50W high frequency

  •  User adjustable input sensitivity & bass shelf controls

  • Balanced input & 2nd order Linkwitz-Riley active crossovers

  • Supplied with stands and fabric wrapped grills

  • 6 year warranty

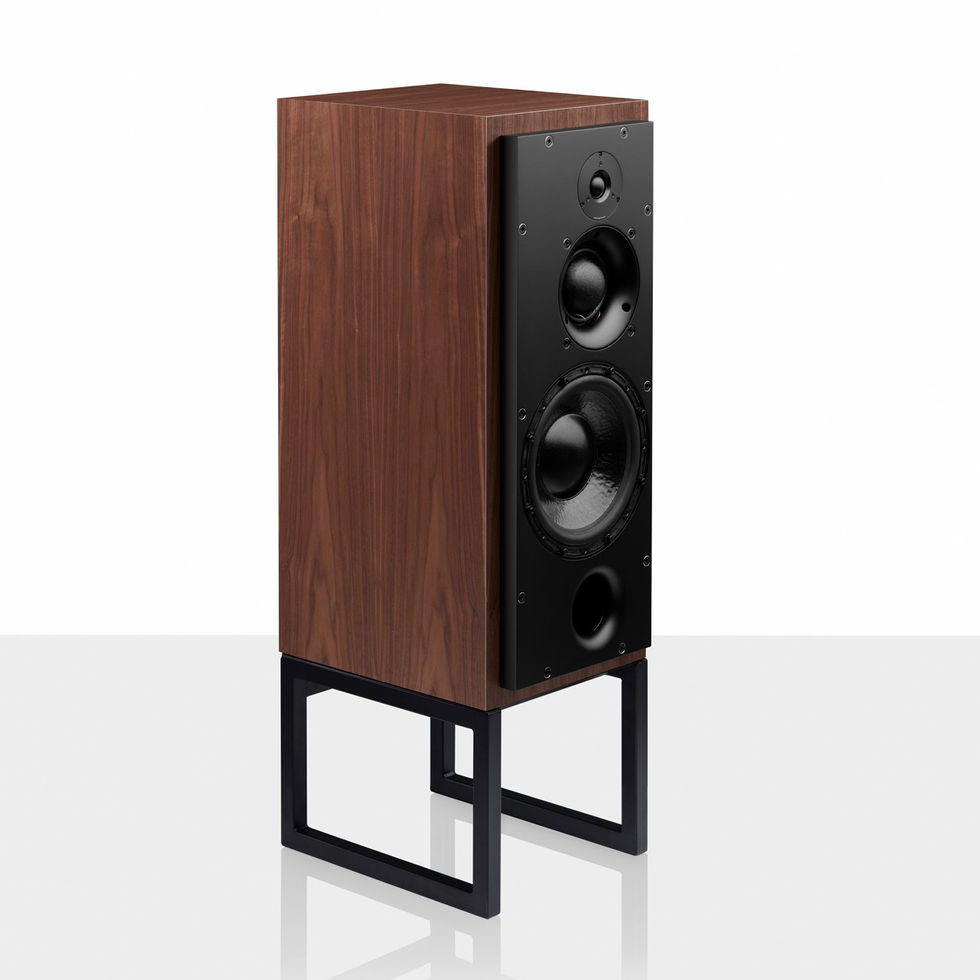

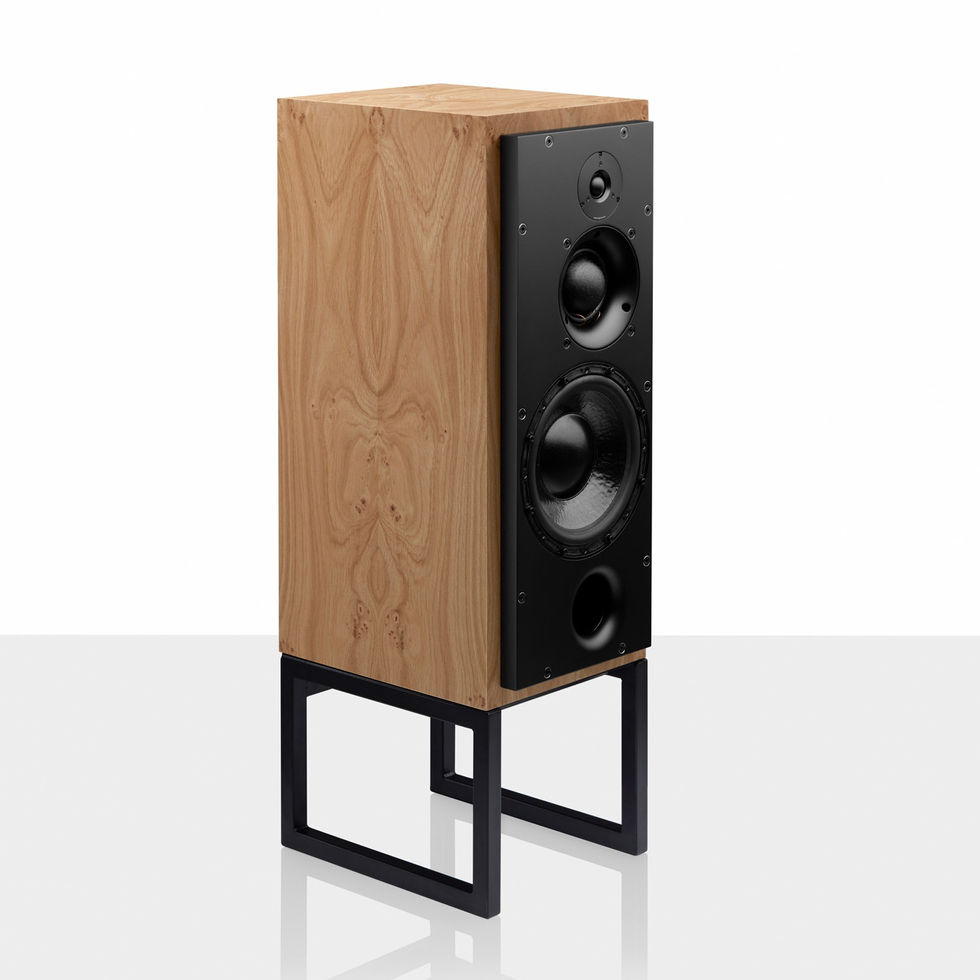

Currently, Oak and Walnut are stocked finishes, and other standard finishes are special-order.

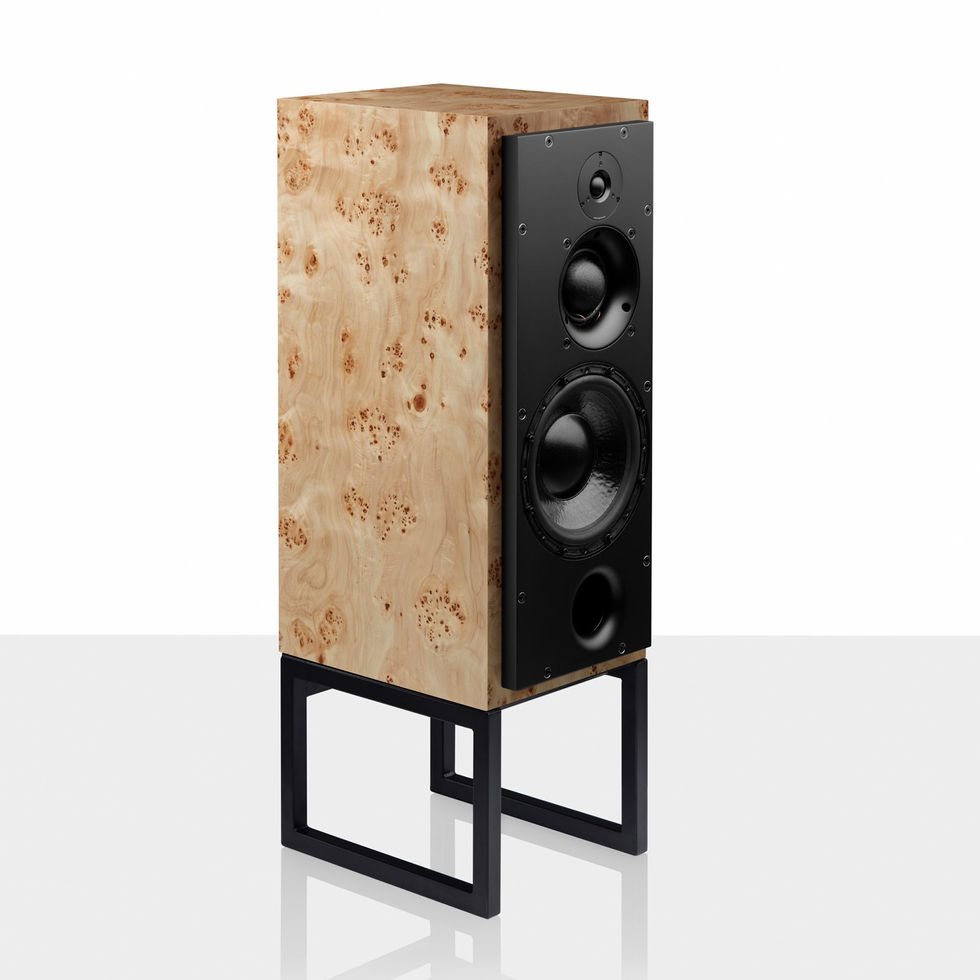

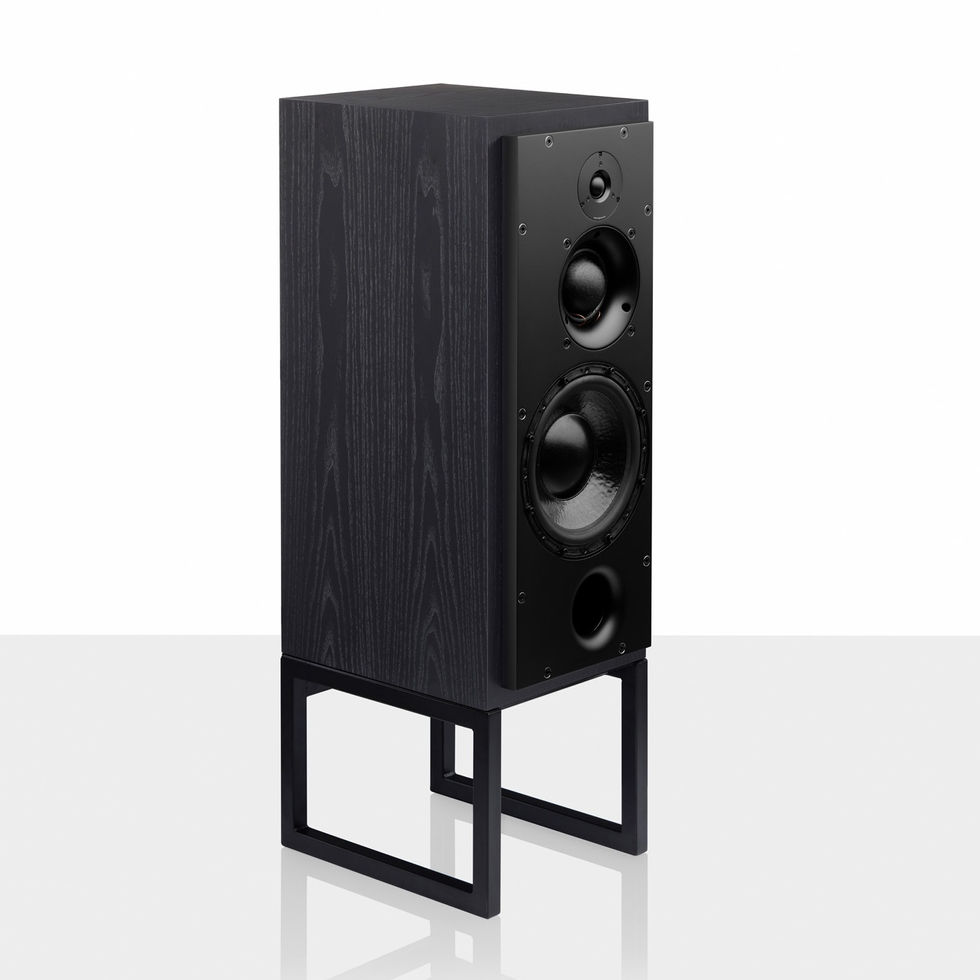

In addition to the standard finishes, premium wood veneers and finishes are available on special order at extra cost. These include Burr Magnolia, Burr Poplar, European Walnut, Pippy Oak and Rosewood in a matt finish. There is an additional cost for a gloss finish to the wood veneer. Piano Black and Piano White in matt or gloss are also available on special order.



Interested but have questions? Call John on 0408 903 609
John is Australia’s longest-serving retailer of ATC Loudspeaker Technology, with a deep, specialist focus on the brand. At Sublime Hi-Fi, we exclusively offer ATC loudspeakers.

Colour

Quantity

Product specifications

Drivers: HF 25mm Mid 75mm LF 234mm Super Linear
Amplitude Linearity ±2dB: 70Hz – 20kHz
Frequency Response -6dB: 38Hz & 25kHz
Matched Response: ±0.5dB
Dispersion: ±80° Coherent Horizontal ±10° Coherent Vertical
Max continuous SPL @1m: 112dB SPL
Crossover Frequency: 380Hz & 3.5kHz
Input Connector: XLR
Input Sensitivity:1V
Input Impedance: >10k ohms balanced XLR
Amplifier Output: HF 50 Watts RMS MF 100 Watts RMS LF 200 Watts RMS
Overload Protection: Active FET momentary gain reduction (amplifiers)
Power Requirements: Voltage: 100, 115, 230 (factory set)
Frequency: 50/60Hz
Power: Nominal 90 Watts, Driven 350 Watts
Accessories Inc. (per pair): 2 x Speaker Stands (as shown), 2 x fabric wrapped grills, 8 x M8 x 1.25mm stand spikes and nuts.
Cabinet Dimensions(HxWxD): 717 x 304 x 480mm / 28.23 x 11.97 x 18.89
including amps (stands add 250mm to height)
Weight: 48.9kg

Shipping Australia-wide

We can arrange shipping to any location within Australia.
