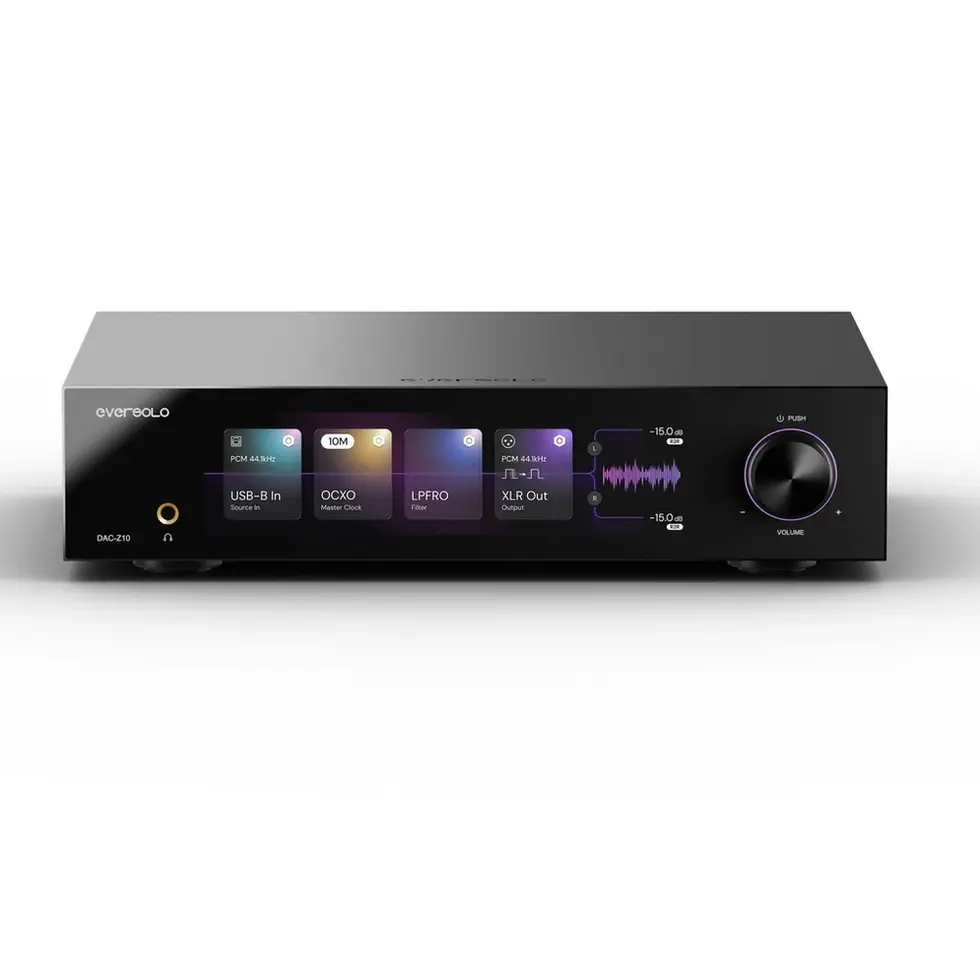

Eversolo DAC-Z10 DAC Preamplifier
$3,349.00
The DAC-Z10 is engineered to transform digital audio into an uncompromising analogue experience. Designed for listeners who demand transparency, precision, and musical authenticity, it reveals the finest detail and natural character of every recording.
The DAC-Z10 is more than a digital-to-analogue converter. It is a reference-grade DAC, preamplifier, and headphone amplifier engineered to deliver uncompromising sound quality, absolute precision, and refined control—bringing you closer to the true essence of music.
The DAC-Z10 is built on Eversolo’s Fully Isolated Architecture (FIA™), which completely separates the digital and analogue domains to minimise interference and preserve signal purity. Three independent linear power supplies individually power the left channel, the system, and the right channel, allowing each to operate in an ultra-low-noise environment.
The DAC-Z10's decoding architecture features two sets of AK4191 + AK4499 DACs for independent left and right channels, combined with a fully balanced analogue preamplifier that employs precise dual-channel R2R volume control. This configuration achieves superior DNR and lower THD+N, unlocking the full potential of the music.
Interested but have questions? Call John on 0408 903 609
Quantity
Product Specifications
- Display
8.8" IPS - Chassis Material
Aluminium alloy - Main Processor
DCP8568 - DAC
• Left Channel: AK4191 + AK4499
• Right Channel: AK4191 + AK4499 - Audio Processor
Multi-core USB audio processor - OPA Chip
OPA1612 - Power
Triple ultra-low noise linear power supplies
Audio Inputs and Outputs
Bluetooth Audio Input
• Qualcomm QCC5125 Bluetooth module
• Bluetooth version: BT5.0
• Supports SBC/AAC Bluetooth audio protocols
USB-B Audio Input
• Compatible with Windows 10 and above, macOS, Android, and iOS
• Supports up to Stereo DSD512 / PCM 768kHz 32Bit
IIS Input
Supports 8 mode configurations, up to Stereo DSD512 / PCM 768kHz 32Bit
AES/EBU Input
Up to Stereo PCM 192KHz/24Bit / DSD64 DoP
Optical Audio Inputs
• Number of inputs: 2
• Up to Stereo PCM 192KHz/24Bit / DSD64 DoP
Coaxial Audio Inputs
• Number of inputs: 2
• Up to Stereo PCM 192KHz/24Bit / DSD64 DoP
ARC Input
Up to Stereo PCM 192KHz/24Bit
Analogue Audio Inputs
XLR (Balanced), RCA
Analogue Audio Outputs
• Pre-out: XLR (Balanced), RCA
• Headphone out: 6.35mm single-ended
External Clock Input
Supports 10M/25M clock inputs with 50Ω or 75Ω impedance
Recommended Headphone Impedance
16–300Ω (Low Gain: 16–32Ω / High Gain: 32–300Ω)
Audio Characteristics
XLR Output Audio Characteristics
• Output Level (Vrms): 5Vrms @ 0dBFS
• THD+N @ No-wt: 0.00008% @ 1kHz (-122dB @ 1kHz)
• Noise @ No-wt: <1.2uVrms
• SNR @ A-wt: 130dB
• Frequency Response: 20Hz–20kHz (±0.1dB)
• Crosstalk: -130dB
• DNR @ A-wt: 130dB
RCA Output Audio Characteristics
• Output Level (Vrms): 2.5Vrms @ 0dBFS
• THD+N @ No-wt: 0.000097% @ 1kHz (-120dB @ 1kHz)
• Noise @ No-wt: <1.5uVrms
• SNR @ A-wt: 128dB
• Frequency Response: 20Hz–20kHz (±0.1dB)
• Crosstalk: -123dB
• DNR @ A-wt: 128dB
Headphone Audio Characteristics (Low Gain Mode)
• Output Level (Vrms): 4Vrms @ 0dBFS
• THD+N @ No-wt: 0.0003% @ 1kHz (-110dB @ 1kHz)
• Noise @ No-wt: <2.5uVrms
• SNR @ A-wt: 124dB
• Frequency Response: 20Hz–20kHz (±0.1dB)
• DNR @ A-wt: 124dB
Headphone Audio Characteristics (Mid Gain Mode)
• Output Level (Vrms): 5.6Vrms @ 0dBFS
• THD+N @ No-wt: 0.00018% @ 1kHz (-115dB @ 1kHz)
• Noise @ No-wt: <2.5uVrms
• SNR @ A-wt: 126dB
• Frequency Response: 20Hz–20kHz (±0.1dB)
• DNR @ A-wt: 126dB
Headphone Audio Characteristics (High Gain Mode)
• Output Level (Vrms): 7Vrms @ 0dBFS
• THD+N @ No-wt: 0.00013% @ 1kHz (-118dB @ 1kHz)
• Noise @ No-wt: <2.5uVrms
• SNR @ A-wt: 127dB
• Frequency Response: 20Hz–20kHz (±0.1dB)
• DNR @ A-wt: 127dB
Other Information
Power Supply
AC 110~240V 50/60Hz
USB Port
USB2.0 x 1 (for firmware upgrade only)
Control Methods
• Touchscreen control
• Remote control
• Mobile App control
Rated Power Consumption
32W
Dimensions (W x H x D)
365 x 88 x 310 mm
