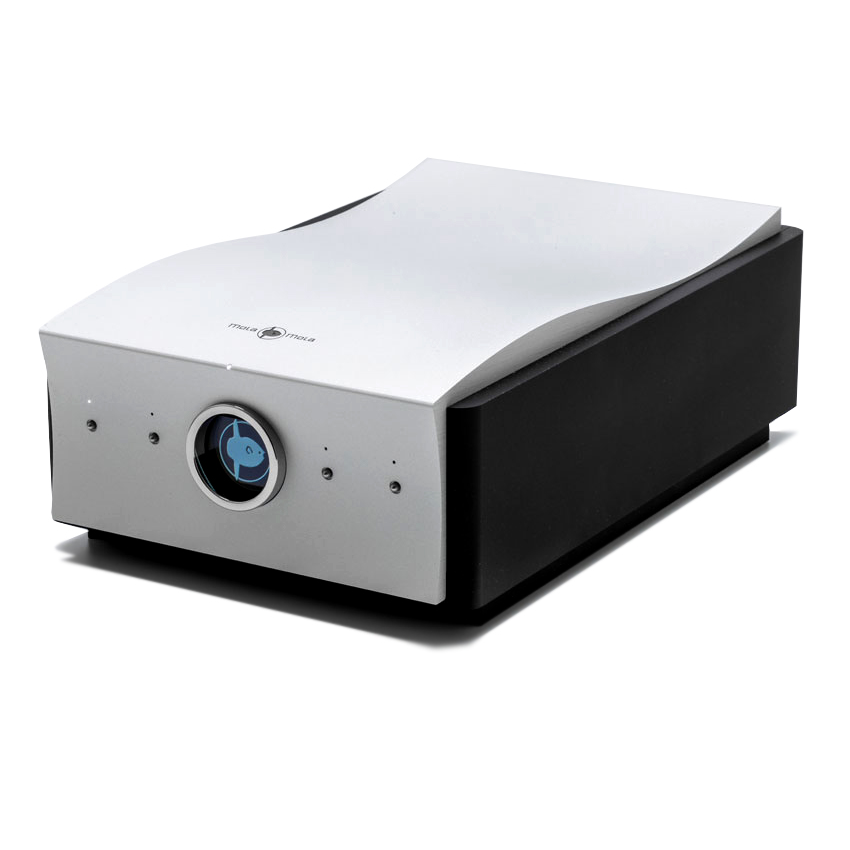

Mola Mola Tambaqui DAC

Price

$18,450.00

Overview

  • PWM DAC with 32-stage discrete analogue FIR output stage. Avoids “sigma delta” tones and “R2R” glitch and low-level linearity errors.

  • Asynchronous upsampling to 3.125MHz/32 bit.

  • 7-th order noise shaper clearing 80kHz band.

  • Each input rate has an optimised upsampling filter chain.



Interested but have questions? Call John on 0408 903 609


Quantity

Product Specifications

I/O

  • Optical (Toslink)

  • S/PDIF (Cinch)

  • AES/EBU (XLR)

  • USB type B

  • Ethernet (Roon)

  • Bluetooth (A2DP,APTX)

  • I²S over HDMI

  • Balanced output

  • Headphone output (6.3mm Jack, Balanced XLR)

  • 2 programmable trigger outputs

upported formats

  • PCM up to 384 kHz /32 bits (>192 kHz and >24 bits only via USB and Ethernet).

  • DoP up to double speed and Native DSD up to quad speed.

Performance

  • Full-Scale Output Level: 20dBu.

  • Signal to Noise Ratio: 130dB.

  • THD, IMD: not measurable (estimated -140dB).

  • Bandwidth: Up to 80kHz (apodising response).

  • Integrated jitter: <1ps from 10Hz upwards, <300fs from 1kHz upwards.

  • Jitter rejection: >80dB at 1Hz after 20 seconds of lock.
